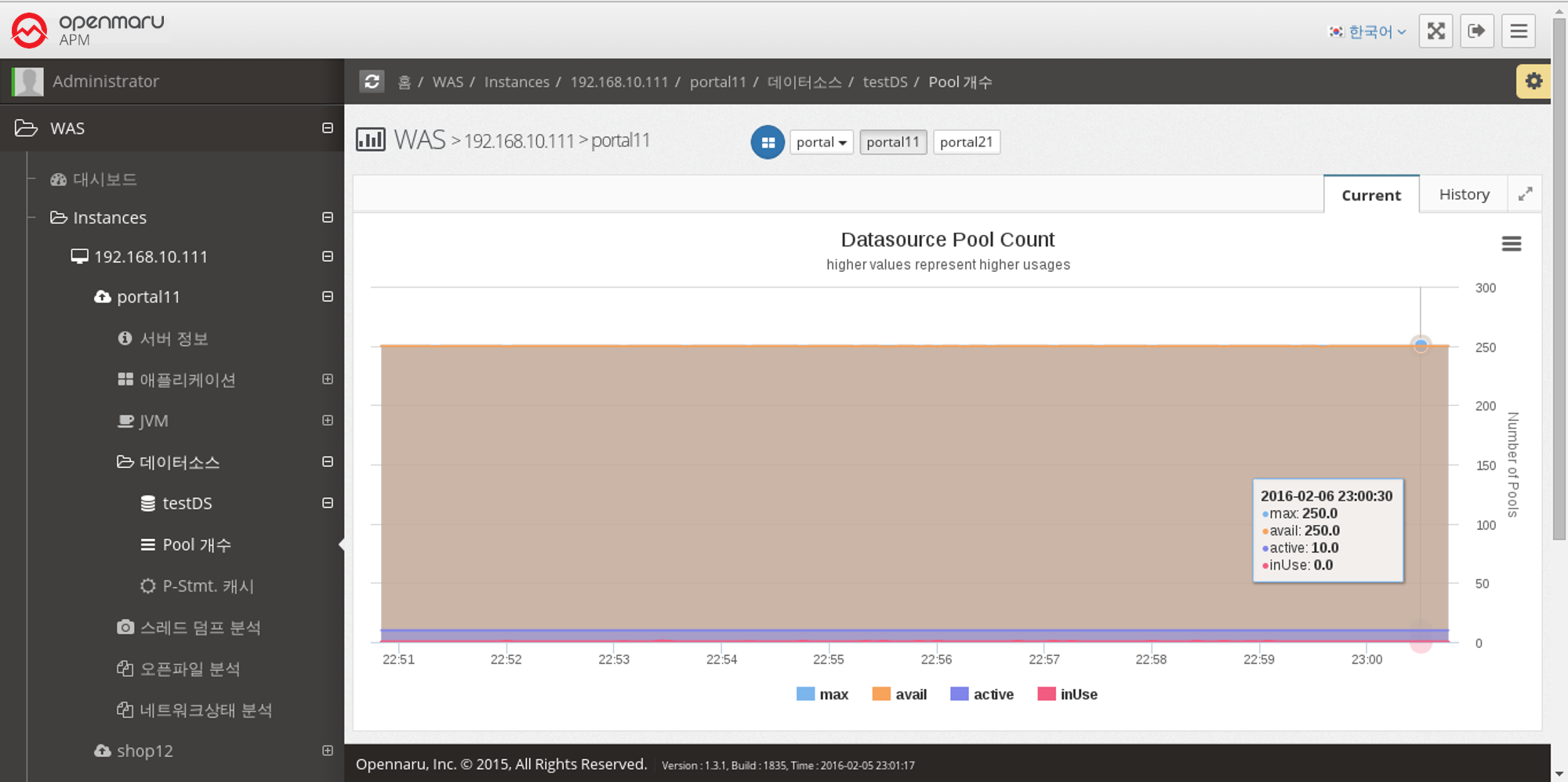

Displays the number of data source connection pools set by WAS in a graph.

Max displays the maximum number of connections set in the Connection Pool,

InUse shows the number of connections currently in use,

Active is the number of connections that are currently available,

Avail is the number of currently connected connections, which is displayed as Active + Idle.

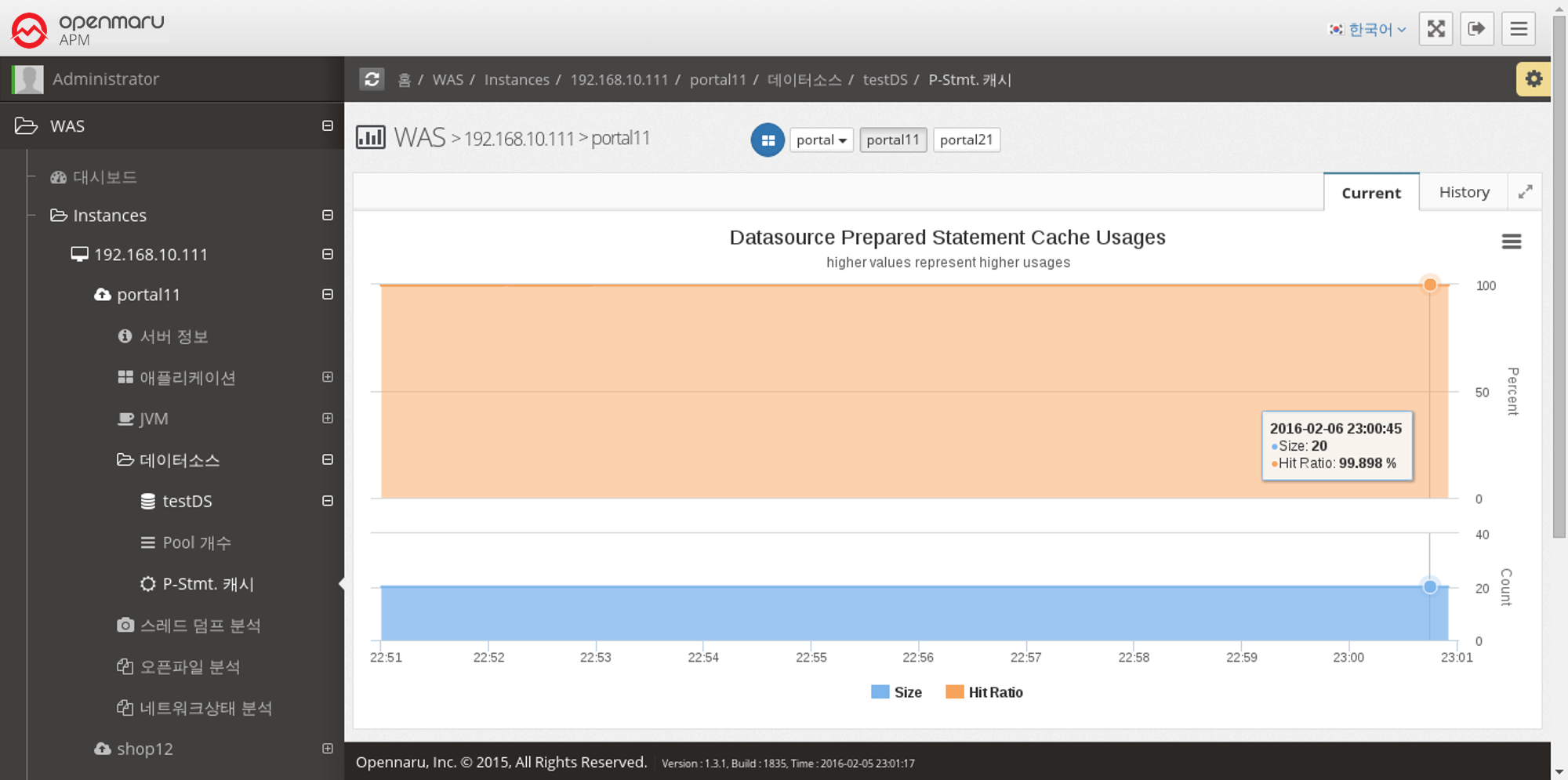

Displays the size and utilization (Hit Ratio) of the Prepared Statement cache in the WAS instance’s database connection pool. WAS such as Apache Tomcat and JBoss EAP 5 do not provide Prepared Statement Cache information, so it is not displayed.
